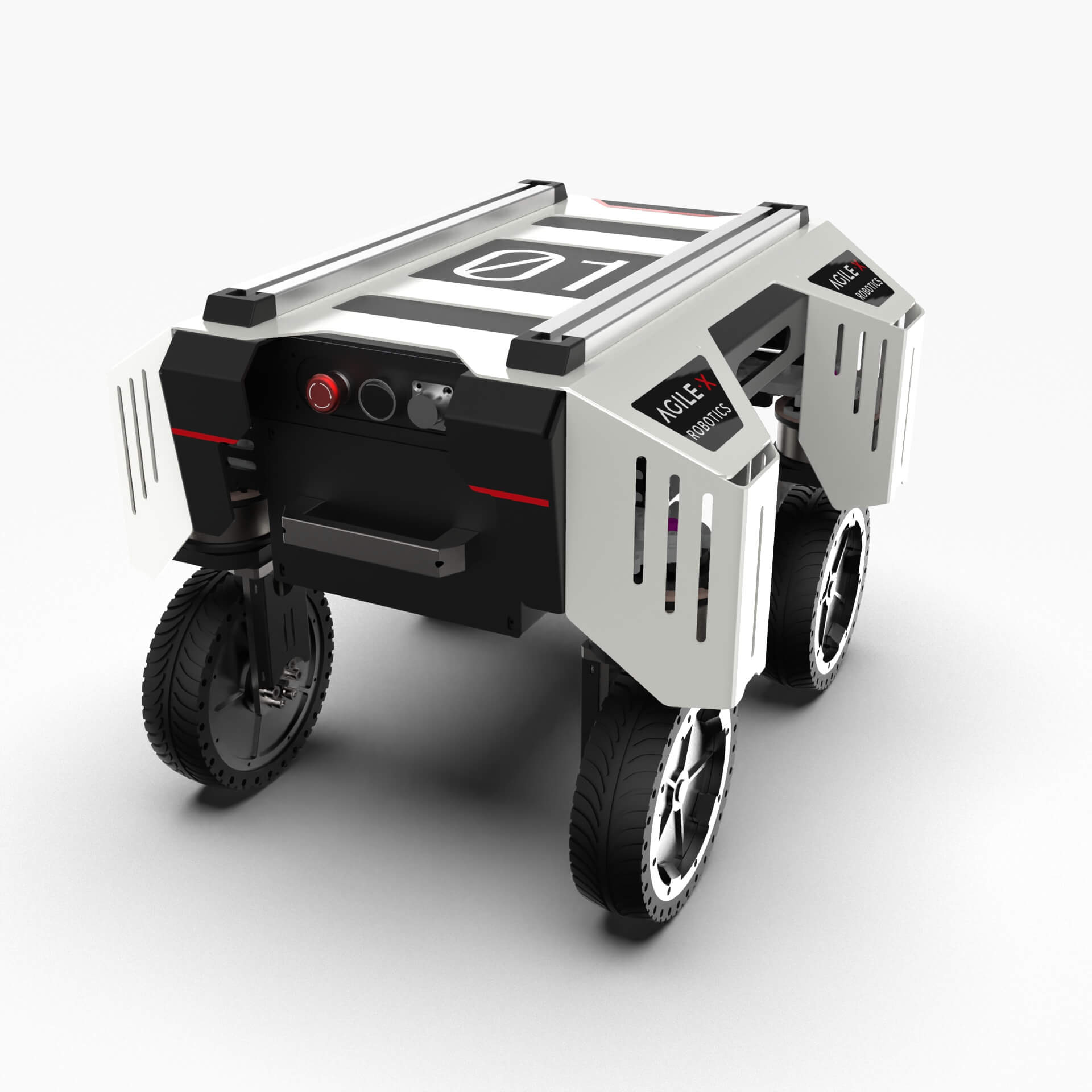

Ranger Mini

AgileX
Mid-weight

Spinning around... with ease

Ranger Mini carries forward AgileX’s technical heritage of omnidirectional UGV by featuring a compact body and zero turning radius to achieve 360° static steering.

As a UGV with superb flexibility and performance, Ranger Mini combines the obstacle-climbing ability of SCOUT series with the high load capacity and long battery life of HUNTER series. Thanks to AgileX’s technical heritage in motion control, it can easily operate in both indoor and outdoor environments. Swing arm suspension and higher ground clearance bring a fresh movement experience for indoor and outdoor work.

  • Platform
    weight
    55KG
  • Payload
    Capacity
    50KG
  • Max Travel
    20KM
  • Climbing
    Gradient
    10°
Dimensions (cm)
Length
55.8
Width
49.2
Height
42
No items found.

Features

Removable Battery, Long Run Time

The run time of Ranger Mini lasting up to 5 hours, and the battery is removable designed.

Agile Movements and Robust Performance

As a UGV with superb flexibility and performance, Ranger Mini combines the obstacle-climbing ability of SCOUT series with the high load capacity and long battery life of HUNTER series. Thanks to AgileX’s technical heritage in motion control, it can easily operate in both indoor and outdoor environments. Swing arm suspension and higher ground clearance bring a fresh movement experience for indoor and outdoor work.

Four Modes, One Button

Ranger Mini carries forward AgileX’s technical heritage of omnidirectional UGV by featuring a compact body and zero turning radius to achieve 360° static steering.

  • All-metal body with robust industrial design
  • 4 x 120 W steering motors + 4 x 250 W driving motors
  • Support Spin, Traverse, Diagonal and Ackermann modes

Software

PilotOS

Turn your robot into a teammate with the software package that enables full control.

Packages

Base platform

Remote Controlled

$10,560.00 USD
Enquire
Package 1

AgileX AutoKit

Base Platform + $14,625.00 USD
  • LiDAR
  • Display Module
  • Onboard Computer
Enquire
Package 2

AgileX R&D Kit

Base Platform + $5,250.00 USD
  • LiDAR
  • Depth Camera
  • Onboard Computer
Enquire
Robots
for
Humans
Package 3

AgileX R&D Kit Pro

Base Platform + $10,500.00 USD
  • LiDAR
  • Display Module
  • Depth Camera
  • Onboard Computer
Enquire
Looking for the PDF?
Download spec sheet

See Ranger mini moving
